Stainless Steel Pneumatic Sleeve – Precision Hollow Metal Bushing for Automotive and Mechanical Applications

The pneumatic sleeve is one of the most essential components in modern air-powered mechanical systems. As a precision-engineered hollow metal bushing, it provides structure, alignment, and protection to key assemblies such as valves, rotating shafts, and air fittings. In automotive systems, the importance of reliable pneumatic hardware cannot be overstated — especially in braking, suspension, and pneumatic actuator modules.

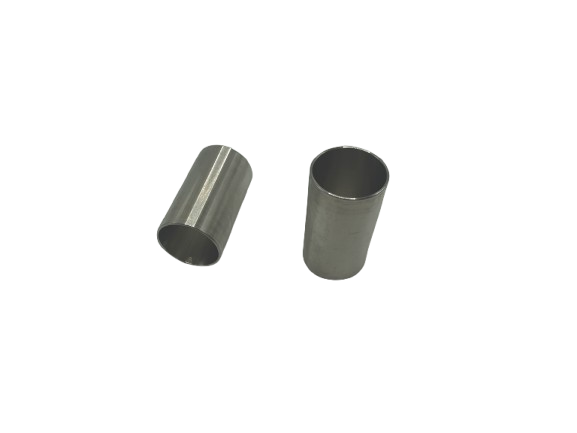

Overview of the Pneumatic Metal Sleeve

This product is a cylindrical stainless steel tube insert manufactured via CNC machining. Designed to tight tolerances, it fits seamlessly into mechanical housings or connectors, providing support and ensuring axial alignment. The material’s corrosion resistance and mechanical strength make it ideal for demanding environments.

Key Features of CNC Pneumatic Bushings

• High-precision inner and outer diameter

• Manufactured using advanced CNC turning

• Smooth polished surface for reduced friction

• Corrosion-resistant finish (passivated or nickel-plated)

• Suitable for static and dynamic assemblies

Applications in Automotive Pneumatic Systems

Pneumatic sleeves are widely used in vehicles, from light-duty cars to commercial trucks. Their roles include:

• Shaft housing support in valve control systems

• Spacer between suspension brackets and arms

• Sleeve insert in air brake modules

• Alignment tool in actuator assemblies

• Connector guide in pressurized air lines

Benefits of Using Stainless Steel Pneumatic Sleeves

These bushings provide long-term durability and ensure proper mechanical alignment under high pressure and vibration. Benefits include:

• Reduced vibration-related wear

• Minimized air leakage in pneumatic systems

• Compatibility with multiple metal interfaces

• Extended life span in corrosive environments

• Improved mechanical stability during movement

Dimensional Reference for Hollow Shaft Sleeves

Compatible Pneumatic Hardware Systems

This sleeve fits a variety of mechanical and pneumatic hardware setups, including:

• Commercial vehicle air brake housing

• Air suspension dampers

• High-precision actuator modules

• Electric vehicle cooling air manifolds

• Pneumatic tool frames and jig assemblies

Material Options for Pneumatic Metal Bushings

We use industrial-grade materials for maximum performance:

• Stainless Steel (SS304 / SS316)

• Carbon Steel (with protective plating)

• Anodized Aluminum for lightweight applications

Manufacturing Process of Air Line Fittings

• CNC lathe turning

• Deburring and edge chamfering

• Surface polishing or anodizing

• Dimensional inspection

• Protective packing and shipping

Mechanical Stability in Pressurized Systems

A key reason engineers prefer our pneumatic sleeves is mechanical consistency. Once assembled into an air-powered structure, these bushings maintain shape and alignment even under dynamic load and pressure. Whether static or moving, the insert ensures system safety and longevity.

Inspection and Quality Assurance

• 100% dimensional check before shipping

• Salt spray resistance test for stainless units

• Smoothness and roundness validation

• Visual inspection under LED lighting

• Batch traceability and laser part codes

Use in Pneumatic Fittings and Connectors

Often used as guides or limiters in threaded connectors or valve housings, the sleeve prevents over-tightening and maintains center alignment for flow consistency.

Trusted by OEMs and Industrial Engineers

Our stainless pneumatic sleeves are trusted by global automotive parts manufacturers, pneumatic module developers, and industrial equipment makers. Customers appreciate the consistency in quality and fit, helping reduce field failure rates and assembly time.

Packaging and Delivery Details

FAQ – Common Questions About Pneumatic Sleeves

What sizes do you support?
We supply industry-standard diameters from 10mm to 50mm OD. Custom sizes are available for bulk orders.

Can these be used with compressed air systems?
Yes, they are designed to withstand internal air pressure and are compatible with BSP/NPT fitting systems.

Do you offer batch certifications?
Yes. Material certificates and QC reports are available upon request.

Conclusion: Why Pneumatic Sleeves Matter

In the world of precision components, the metal sleeve may be small, but it’s critical. A misaligned shaft or leaking air valve can result in serious system issues. Investing in reliable, CNC-machined pneumatic metal bushings ensures your system runs smoother, longer, and safer.
