The modern drone industry is developing rapidly, with unmanned aerial vehicles being used for aerial photography, surveying, mapping, industrial inspection, agriculture, logistics, infrastructure monitoring, and many other applications. As drone platforms become more sophisticated, manufacturers are looking for components that are not only lightweight but also precise, durable, and consistent.
The mechanical components inside a drone play an important role in determining the stability and reliability of the complete UAV system. A drone frame must maintain structural strength while minimizing unnecessary weight. A motor mount must maintain accurate alignment with the propulsion system. A camera bracket or gimbal component must provide stable positioning for imaging equipment. Flight controller mounts and sensor brackets must maintain precise installation positions while protecting sensitive electronics from vibration.
This is where precision CNC machining becomes particularly valuable.
As a professional precision CNC machining manufacturer, we provide custom UAV and drone components for OEM manufacturers, drone brands, engineering companies, and industrial equipment suppliers. Our manufacturing capabilities cover CNC turning, Swiss-type CNC machining, CNC milling, multi-axis machining, drilling, tapping, threading, and customized surface finishing.
We manufacture components according to customer drawings, CAD files, samples, and technical specifications, supporting projects from prototype development to volume production.
Our precision machining capability can achieve tolerances of up to ±0.005 mm for suitable components, helping customers maintain accurate assembly and consistent product quality.
A modern UAV contains many mechanical components that work together with motors, batteries, sensors, cameras, flight controllers, and other electronic systems.

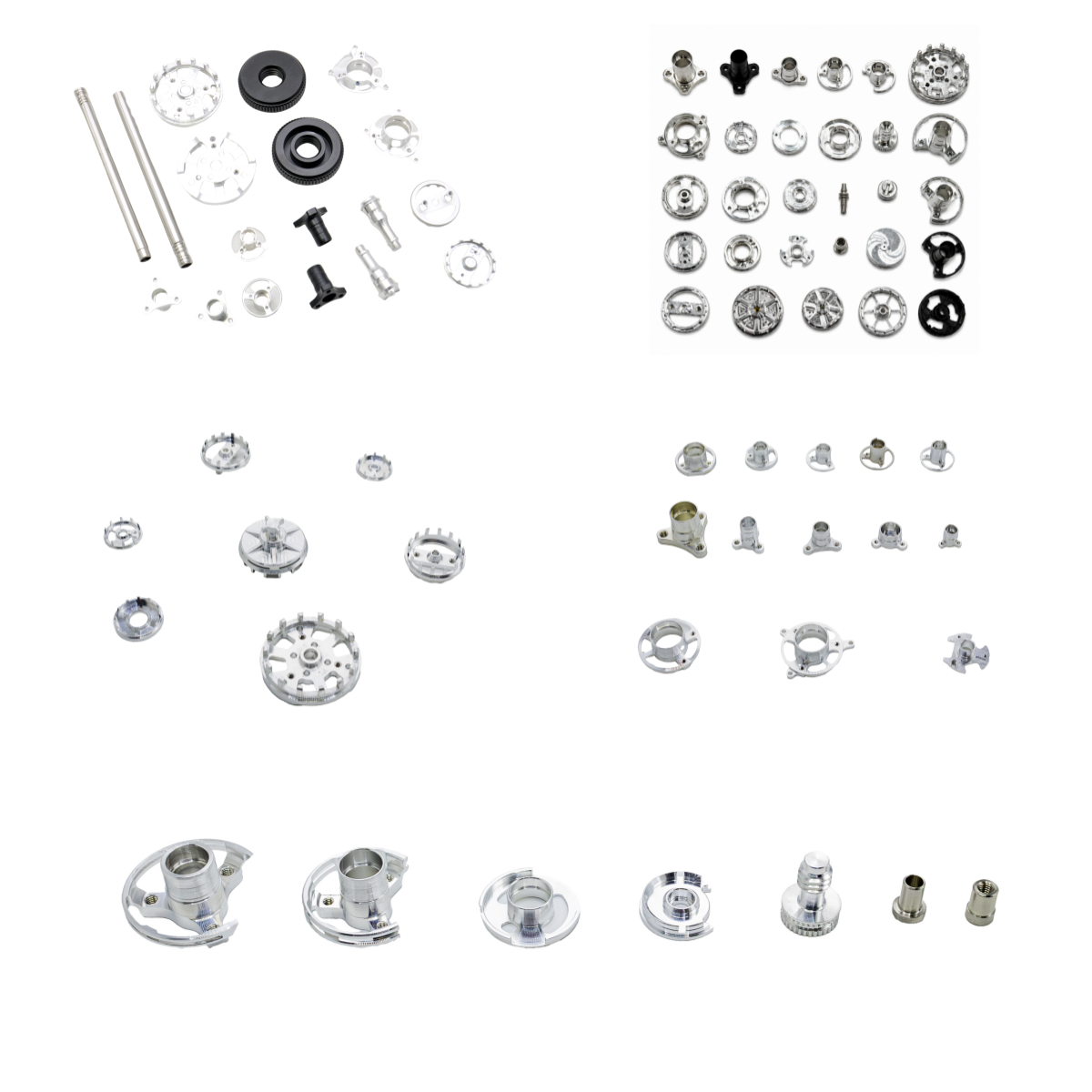

Typical CNC machined drone components include:
These components can be manufactured individually or developed as part of a complete UAV assembly.
The drone frame is the mechanical foundation of a UAV.
It supports motors, electronic systems, batteries, payloads, and other equipment while maintaining the overall geometry of the aircraft.
A precision-machined frame component may include:
The challenge is to reduce unnecessary material without compromising structural strength.
CNC machining allows manufacturers to create lightweight pockets and complex geometries while maintaining accurate mounting surfaces.
Multirotor drones commonly use arms to connect the central frame with the motors.
Arm connectors provide an important mechanical interface between the drone body and individual arms.
Precision arm connectors may require:
A poorly machined arm connector can cause assembly problems or introduce unwanted movement into the frame.
For this reason, precision CNC machining is well suited for custom UAV arm connectors and structural interfaces.
Motor mounts connect the propulsion system to the drone structure.
They must maintain accurate positioning because the motor axis needs to remain properly aligned with the airframe.
Our CNC machining capabilities support the production of:
These parts can include precisely positioned bolt holes, threaded holes, locating features, and lightweight pockets.
Accurate machining helps improve assembly consistency and reduce alignment problems.
Gimbal systems are widely used in camera drones, inspection UAVs, mapping platforms, and professional aerial imaging systems.
A gimbal must provide stable positioning while allowing the camera or sensor to move smoothly.
CNC machined gimbal components may include:
Because gimbal systems often contain multiple moving interfaces, dimensional consistency is especially important.
Professional drones may carry cameras, thermal imaging equipment, LiDAR systems, inspection sensors, or other payloads.
These systems require secure and repeatable mounting structures.
Custom CNC camera mounting components can include:
The design can be customized according to the size and weight of the customer’s payload.
Sensors are essential to modern UAVs.
Depending on the drone platform, sensors may include:
Precision sensor mounts help maintain the correct position and orientation of sensitive components.
Our CNC machining capabilities can produce:
The flight controller is one of the most important electronic systems in a drone.
It processes information from sensors and controls the aircraft’s flight behavior.
Precision mounting components can help maintain stable installation and controlled positioning.
Typical products include:
The exact design can be customized according to the customer’s flight controller and airframe structure.
GPS and antenna systems require stable installation and appropriate positioning.
Custom CNC mounting components can include:
Aluminum and stainless steel are common material choices depending on the specific application and design requirements.
Battery systems are another important part of UAV design.
Battery mounting components need to provide secure installation while keeping unnecessary weight to a minimum.
Products can include:
Lightweight aluminum alloys can be used for structural battery components where suitable.
Landing gear absorbs loads during takeoff and landing.
Depending on the drone design, CNC machined components may include:
These components may require high mechanical strength and good impact resistance.
Spacers and bushings are small but important components within a UAV assembly.
They are used for:
Our Swiss-type CNC machines are particularly suitable for producing small-diameter spacers, sleeves, bushings, and pins.
Material selection is one of the most important considerations when designing drone components.
The ideal material depends on:
6061-T6 is widely used for lightweight CNC machined components.
Advantages include:
Typical applications include:
7075-T6 provides higher strength than many general-purpose aluminum alloys.
It is suitable for applications where strength-to-weight ratio is particularly important.
Potential applications include:
Common grades include:
Stainless steel is suitable for:
It provides excellent corrosion resistance and mechanical durability.
Brass provides excellent machinability and can be used for selected UAV precision components.
Potential applications include:
Carbon steel can be selected for components requiring higher strength and cost efficiency.
Surface treatment can be applied to improve corrosion resistance.
Surface finishing can improve appearance, corrosion resistance, hardness, and wear resistance.
Anodizing is one of the most common finishing processes for aluminum UAV components.
Benefits include:
Black anodizing is popular for drone components because it provides a professional technical appearance.
It is commonly applied to:
Hard anodizing creates a more durable aluminum surface.
It can be considered for components exposed to repeated mechanical contact and wear.
Sandblasting produces a uniform matte surface and can be combined with anodizing.
It is often used for aluminum UAV components requiring a clean industrial appearance.
Polishing can produce a smoother surface finish for selected stainless steel, brass, and aluminum components.
For suitable steel components, zinc plating and nickel plating can improve corrosion resistance and surface durability.
UAV components often require accurate dimensions and repeatable assembly.
Our CNC machining capability includes:
| Specification | Capability |
|---|---|
| Precision Tolerance | Up to ±0.005 mm |
| Diameter Range | Approximately 2–33 mm for suitable turned components |
| Surface Roughness | Ra0.4–Ra1.6 |
| Threading | Metric / UNC / UNF / Custom |
| Materials | Aluminum / Stainless Steel / Brass / Steel / Copper Alloys |
| Production | Prototype to Mass Production |
Actual achievable tolerance depends on the specific component design, material, geometry, and drawing requirements.
Our production facility is equipped with advanced CNC manufacturing equipment.
Japanese STAR Swiss-type CNC machines are ideal for small precision components.
Typical applications include:
Citizen CNC equipment supports high-precision automatic turning and repeatable production of small metal components.
Tsugami equipment is suitable for complex precision turning applications where dimensional stability and repeatability are important.
Multi-axis machining is used for complex UAV brackets, housings, mounting structures, and components with multiple machining surfaces.
This technology can reduce the number of setups while maintaining accurate relationships between different features.
UAV components often have strict dimensional and assembly requirements.
Our inspection equipment includes:
These inspection systems help us monitor critical dimensions throughout production.
Incoming materials are checked according to project requirements.
Initial samples are measured against customer drawings before mass production.
Critical dimensions are monitored during machining.
Finished products are inspected before packaging and shipment.
Depending on customer requirements, inspection may include:
Drone manufacturers often develop unique structures and proprietary designs.
Standard components may therefore not meet every application.
We support customized UAV components based on:
Our engineering team can review component drawings before production and help identify suitable machining processes.
From prototype development to volume manufacturing, we provide flexible OEM manufacturing support.
Our CNC machined UAV components can be used in:
Camera mounts, structural components, motor mounts, and precision hardware.
Sensor brackets, payload mounting components, landing structures, and protective housings.
Lightweight structural parts, sensor mounts, motor interfaces, and equipment mounting components.
Camera brackets, sensor housings, gimbal components, and precision mounting hardware.
Payload brackets, GPS mounts, sensor structures, and lightweight frame components.
Motor mounting components, structural hardware, spacers, sleeves, and lightweight accessories.
We specialize in precision metal machining and can achieve tolerances up to ±0.005 mm for suitable UAV components.
Our STAR, Citizen, and Tsugami CNC machines are suitable for small and complex precision components.
We provide aluminum 6061-T6, aluminum 7075-T6, stainless steel, brass, carbon steel, and other engineering materials according to project requirements.
Anodizing, hard anodizing, sandblasting, polishing, zinc plating, nickel plating, and other finishing processes can be arranged for suitable components.
CMM, optical inspection, CCD vision systems, precision gauges, and other inspection equipment support our quality control process.
We manufacture customized UAV components based on drawings, samples, CAD models, and technical specifications.
We support prototype samples, small-batch production, and larger-volume OEM orders.
Our quality management system includes internationally recognized standards.
ISO 9001 provides a structured framework for quality management, manufacturing process control, inspection, documentation, and continuous improvement.
IATF 16949 is an automotive-focused quality management standard that supports controlled manufacturing processes and consistent product quality.
These quality management systems support our commitment to stable manufacturing and reliable precision components.
Modern UAVs require more than advanced electronics and powerful motors. The mechanical components supporting these systems must also provide accurate assembly, structural stability, low weight, and long-term reliability.
From drone frame components and arm connectors to motor mounts, gimbal brackets, camera mounts, sensor supports, flight controller plates, battery trays, landing gear components, spacers, bushings, and custom precision hardware, CNC machining provides the flexibility and accuracy required by modern UAV manufacturers.
With advanced STAR, Citizen, and Tsugami CNC equipment, multi-axis machining capabilities, professional inspection systems, multiple material options, and comprehensive surface treatment services, we provide customized CNC machined UAV components for customers worldwide.
Whether you are developing a new commercial drone, industrial UAV, inspection platform, agricultural drone, or custom unmanned system, we can manufacture precision metal components according to your drawings and technical requirements.
From prototype to mass production, our goal is to provide consistent, reliable, and high-quality CNC drone components that support the development of next-generation UAV systems.
If you are interested in this exceptional product, please feel free to contact us through the message box on the left side or the contact information provided below. We are eager to collaborate with you for a brighter future!
