omprehensive Guide to Hydraulic & Pneumatic Fittings: Precision Brass Components for Fluid Power Systems

1. The Core Role of Fittings in Hydraulic and Pneumatic Systems

In modern machinery, fittings are the essential joints that connect every line of pressure and flow.
A high-quality fitting ensures system integrity, prevents leakage, and maintains efficiency even under extreme conditions.

Hydraulic and pneumatic fittings act as the safety gatekeepers of energy transmission.
Once a fitting fails, the system loses stability and reliability.

2. Working Principles

Hydraulic Systems

Hydraulics rely on the incompressibility of oil to transfer energy.

• Stable high pressure (up to 700 bar)

• Smooth transmission

• Minimal loss and vibration

Pneumatic Systems

Pneumatics use compressed air, which is clean, fast, and flexible.

• Lightweight operation

• Quick response

• Ideal for automation

Both systems rely on fittings to prevent leakage, withstand pressure, and allow efficient disassembly.

3. Material Comparison Table

4. Types of Hydraulic & Pneumatic Fittings

• Threaded Fittings — BSP, NPT, Metric, UNF threads

• Compression Fittings — strong sealing under vibration

• Quick Connect Fittings — one-touch connection

• Adapters — convert between standards

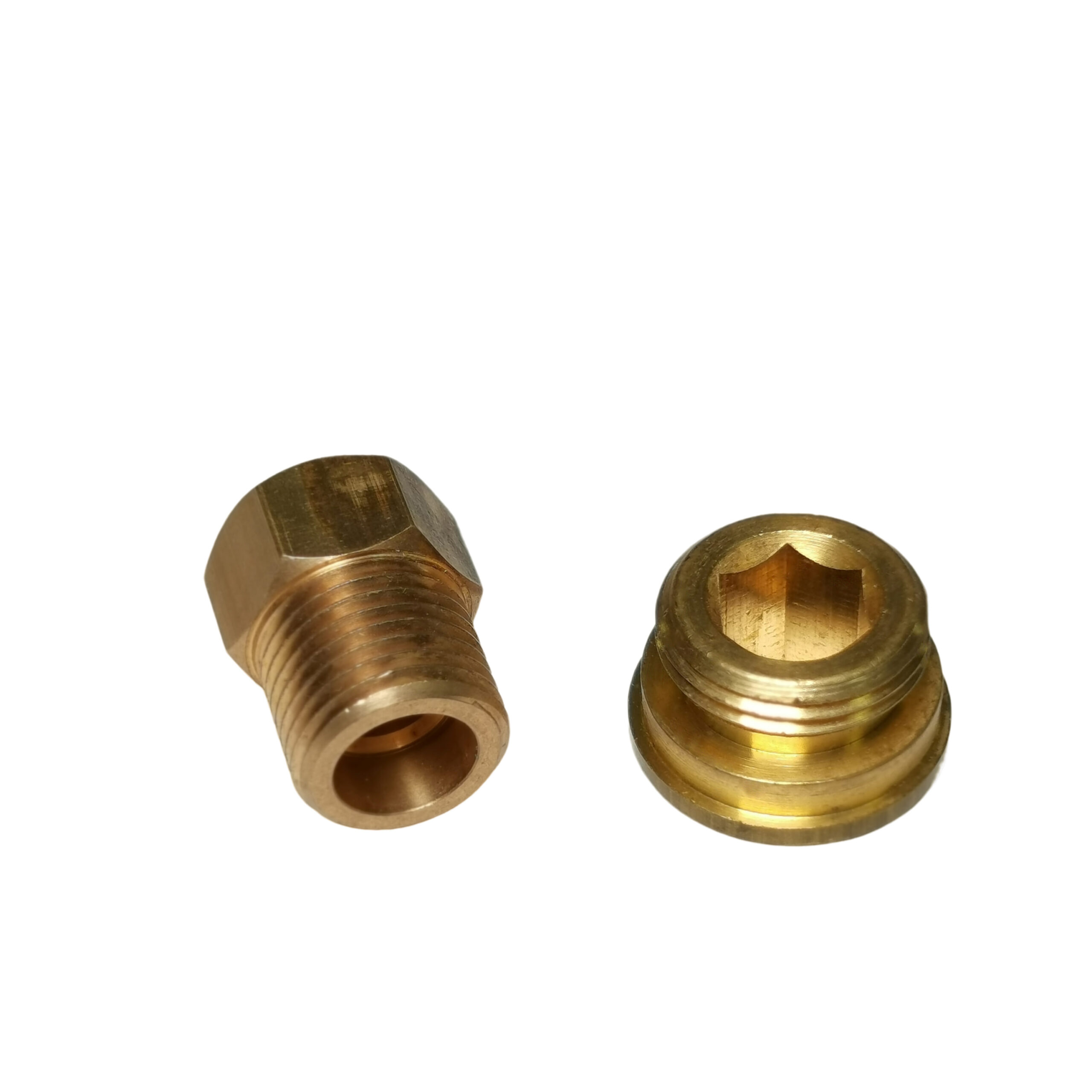

• Plugs & Caps — seal ports, prevent contamination

5. Manufacturing Process Overview

1. Raw Material Inspection
   Select solid, impurity-free brass rods.

2. CNC Machining
   Precision: ±0.01 mm; threads fully checked.

3. Surface Finishing
   Nickel plating, polishing, or anodizing.

4. Testing & Quality Control
   100% pressure and sealing test (0–6000 PSI).

6. Technical Specifications

7. Applications

• Automotive Industry – air control, brakes, fuel systems

• Engineering Machinery – pumps, hydraulic cylinders

• Automation – pneumatic clamps, robot arms

• Aerospace – hydraulic actuators, air channels

• Laboratories – vacuum and gas testing systems

8. Quality Assurance

9. Advantages

✅ High sealing performance
✅ Corrosion resistance
✅ Long lifespan
✅ Fully customizable
✅ Exported to over 50 countries

10.Our Equipment

Our advanced production facilities are the foundation of our quality. We continuously invest in high-end machinery to maintain precision and consistency:

• CNC Turning and Milling Machines: For accurate threading and dimensional control.

• Automatic Forging Lines: Improve material density and mechanical performance.

• High-Pressure Hydraulic Testing Machines: Ensure leak-proof sealing under real working conditions.

• Polishing and Coating Lines: Provide various finishing options.

• 3D Coordinate Measuring Machines (CMM): For detailed dimensional verification.

These facilities enable us to handle mass production and customized manufacturing, guaranteeing both speed and accuracy.

11.Our Certifications

Our products comply with international standards and certifications, proving our commitment to excellence:

• ISO 9001:2015 Quality Management Certification

• CE Certification (European Compliance)

• API Certification (for Oil & Gas Industry)

• RoHS and REACH Compliance (Environmental Safety)

• National Gas Equipment Safety Approval

Each certification reflects our strict adherence to quality, safety, and environmental responsibility.

12. FAQ

Q1: What’s your maximum working pressure?
→ Up to 6000 PSI for stainless steel fittings.

Q2: Can you make custom designs?
→ Yes, we support OEM/ODM with samples or drawings.

Q3: What’s your lead time?
→ 7 days for samples, 15–25 days for production.

Q4: What tests are performed before shipment?
→ Pressure, sealing, and salt spray tests.

Q5: Do you provide certifications?
→ Yes, ISO9001, RoHS, SGS, and Reach.

13. Conclusion

Hydraulic and pneumatic fittings are the backbone of every motion system.
Precision brass and stainless steel fittings ensure durability, safety, and global compatibility.

With advanced CNC technology and rigorous inspection, we are committed to delivering world-class fluid connection solutions trusted by industries worldwide.
